Solenoid Valve

Solenoid Valve

Valve Type

Complete specifications to meet various needs.Huasheng Electric provides proportional solenoid valves for ventilators and anesthesia machines. Currently, the flow range can cover 0-250L/min, the working pressure range can cover 0-700KPa, and the voltage specifications are complete, which can meet the various needs of ventilator and anesthesia machine manufacturers;

Can be replaced in situ.In addition to key technical indicators such as hysteresis, linearity, response time, and lifespan of proportional solenoid valves, the product size, air path connection method, circuit connection method, and electrical signal control method of Huasheng Electric's proportional solenoid valves for ventilators and anesthesia machines are also consistent with the corresponding specifications and models of mainstream international suppliers of proportional solenoid valves for ventilators and anesthesia machines (Kangmaosheng, Norguan). Manufacturers of ventilators and anesthesia machines do not need to change the original air path of the equipment and can replace it in situ;

Extremely cost-effective.Huasheng Electric's proportional solenoid valves for ventilators and anesthesia machines have corresponding price advantages, which helps manufacturers of ventilators and anesthesia machines to reduce costs and increase efficiency.


Online ConsultationOnline Consultation Product ManualProduct Manual
Product Parameters

Technical DataTechnical Data

ModelRange of work pressure(KPa)Flow control range(L/min)Operating current range(mA)Working Voltage(V DC)Installation methodCompare with foreign enterprise model specifications
BFB350B4-12N20~200KPa0~130@200KPa0~39012Plug in typeKangmaosheng CP Series CP-C721-PW2-072
BFB350B4-24N20~200KPa0~130@200KPa0~18024Plug in typeKangmaosheng CP Series CP-C721-PW2-074
BFB440B4-12N60~600KPa0~180@200KPa0~42012Plug in typeKangmaosheng CP Series CP-C921-TW2-0712
BFC460B4-12N70~700KPa0~180@200KPa0~21012Plug in typeNorcrown EQP series 12-216C-04641211mA 57Ω
BFC460B4-06N70~700KPa0~180@200KPa0~4006Plug in typeNorcrown EQP series 12-216C-04641
——————417mA 14.4Ω
BFA020A1-24N100~1000KPa0~0.5@100KPa0~8024Countersunk base typeKefule 3000 series 3015 aperture 0.20mm24V DC

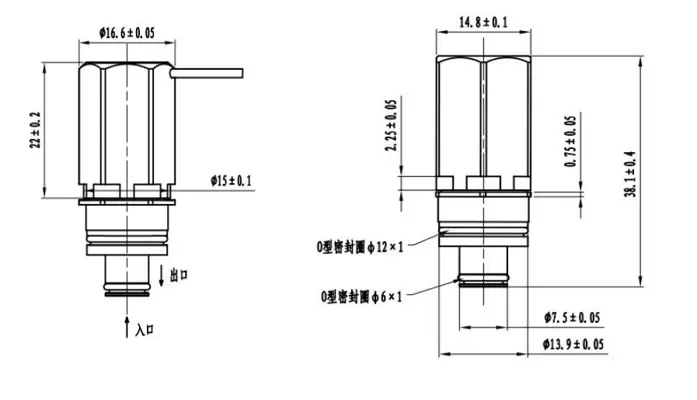

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing

After ServiceAfter Service

To provide solid support for all after-sales services, ensuring service quality and efficiency:

1. National service outlets:Establishing service outlets and testing centers in major industrial cities in China to achieve regional service coverage and shorten on-site service response time;

2. Original factory engineering team:All service engineers have undergone professional training and assessment, possess the ability to debug, repair, and calibrate sensors/joint modules throughout the entire process, and are certified to work;

3. Standardized service process:Establish a standardized process from service acceptance, fault diagnosis, solution, service execution, and after-sales follow-up to ensure that every service is recorded, tracked, and guaranteed;

4. Service quality follow-up:After all services are completed, Follow up with customers within 72 hour, collect customer feedback, and continuously optimize service processes and quality.

Promise to quickly solve problems within 12 hours, 7x24Timely response within hours,36on-site maintenance within hours.
