Ultimate lightweight design; Flexible and diverse installation forms.

Joint Components
Ultimate lightweight design; Flexible and diverse installation forms.
Technical Data| Project | Unit | TCHL-11-50 | TCHL-11-80 | TCHL-11-100 |
| Reduction ratio | - | 50 | 80 | 100 |
| Rated torque at 2000r/min input | N.m | 3.6 | 5.1 | 5.3 |
| Maximum allowable value of average load moment | N.m | 4.8 | 7.7 | 7.7 |
| Start stop torque | - | 12 | 16 | 19 |
| Peak output torque | N.m | 12.5 | 20 | 25 |
| Rated output speed | rpm | 60 | 37.5 | 30 |
| Peak output speed | rpm | 80 | 50 | 40 |
| Rated voltage | V | DC 48 | ||
| Output moment of inertia | Kg·m^2 | 0.012 | 0.030 | 0.048 |
| Allowable overturning moment | N.m | — | 25 | — |
| Torque sensor | - | — | Optional | — |
| Repetitive positioning accuracy | arcsec | — | ≤10 | — |
| Transmission accuracy | arcsec | — | ≤60 | — |
| Encoder | - | — | Dual encoder, single loop absolute value, 17 bit resolution | — |
| Driver board communication protocol | - | — | EtherCat/CanFd | — |
| Protection level | - | — | IP 54, Update connector to IP 65 | — |
| Appearance dimensions (diameter X height) | mm | — | φ52*57 | — |
| Hollow diameter | mm | — | φ8 | — |
| Weight | Kg | — | 0.37 | — |
| Environmental temperature for use | °C | — | -20°C~50°C | — |

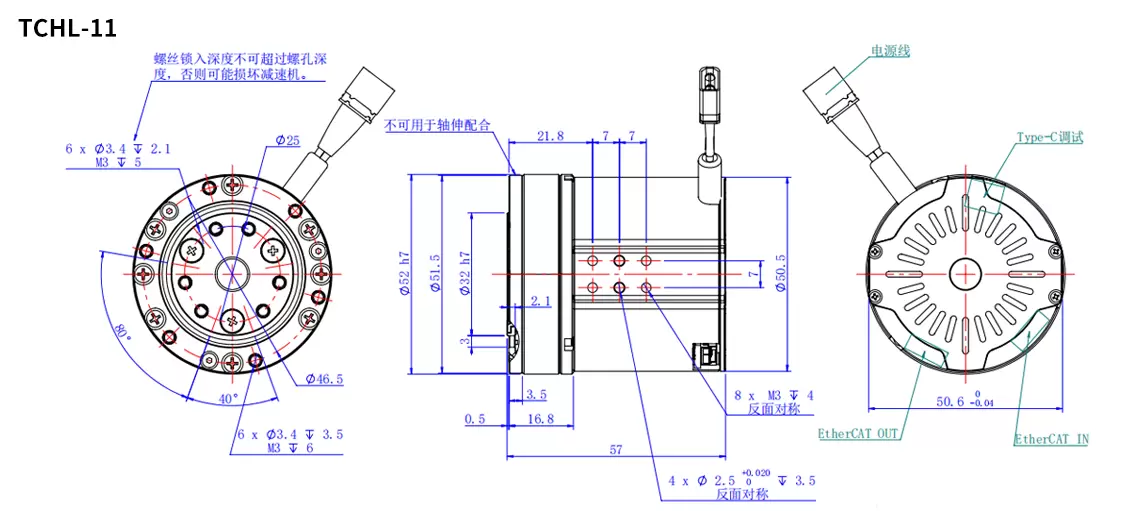

Overall Dimensions
Product Drawing
