TCHL14

TCHL14

Joint Components

Ultimate lightweight design; Flexible and diverse installation forms.

Product Parameters

Technical DataTechnical Data

ProjectUnitTCHL-14-51TCHL-14-81TCHL-14-101
Reduction ratio-5181101
Rated torque at 2000r/min inputN.m4.56.56.5
Maximum allowable value of average load momentN.m689.5
Start stop torque-151924
Peak output torqueN.m193036
Rated output speedrpm58.83729.7
Peak output speedrpm78.449.339.6
Rated voltageVDC 48
Output moment of inertiaKg·m^20.0250.0640.100
Allowable overturning momentN.m30
Torque sensor-Optional
Repetitive positioning accuracyarcsec≤10
Transmission accuracyarcsec≤60
Encoder-Dual encoder, single loop absolute value, 17 bit resolution
Driver board communication protocol-EtherCat/CanFd
Protection level-IP 54, Update connector to IP 65
Appearance dimensions (diameter X height)mmφ65*55
Hollow diametermmφ10
WeightKg0.45
Environmental temperature for use°C-20°C~50°C

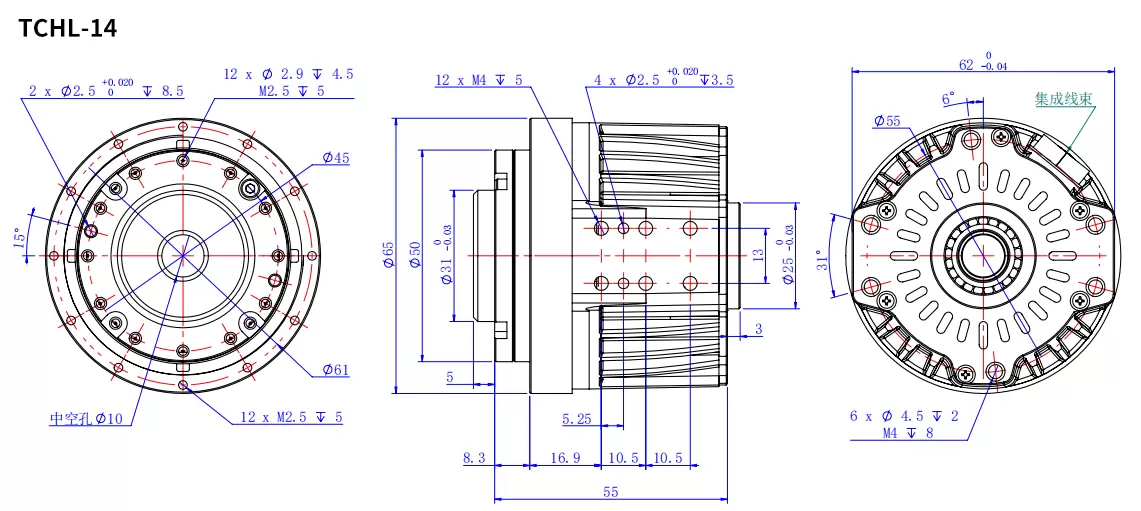

Overall DimensionsOverall Dimensions
