Adopting a dual magnetic encoder; High precision transmission performance; Super strong overload resistance.

Joint Components
Adopting a dual magnetic encoder; High precision transmission performance; Super strong overload resistance.
Technical Data| Project | Unit | TCM20B51 | TCM20B81 | TCM20B101 | TCM20B121 |
| Reduction ratio | — | 51 | 81 | 101 | 121 |
| Maximum allowable average load | Nm | 42 | 58 | 61 | 61 |
| Maximum allowable torque for start stop operation | Nm | 69 | 91 | 102 | 107 |
| Rated speed | rpm | 58.8 | 37 | 29.7 | 24.7 |
| Maximum speed | rpm | 78.4 | 49.3 | 39.6 | 33 |
| Rated current | A | 6.3 | 5.5 | 4.6 | 3.85 |
| Maximum current | A | 18 | 14.8 | 13.7 | 11.4 |
| Rated voltage | V | DC 48 | |||
| Output moment of inertia | kg·m² | 0.42 | 1.06 | 1.65 | 2.38 |
| Allowable overturning moment | Nm | — | 187 | — | — |
| Gearbox backlash | arcsec | — | ≤10 | — | — |
| Positioning accuracy | arcsec | — | 60 | — | — |
| Design life | h | — | 10000 | — | — |
| Weight | kg | — | 1.9 | — | — |
| Environmental conditions for use | — | Usage temperature: 0-40 ° C/Storage temperature: -20-60 ° C Usage humidity/Storage humidity: 20-80% RH (no condensation) No dust, metal powder, corrosive gases, flammable gases, oil mist, etc. Indoor use, avoid direct sunlight Below 1000 meters above sea level | |||
| Motor insulation | — | Insulation resistance: 100M Ω or above (DC500V) Insulation voltage: AC1500V/1MIN Insulation grade: Class A | |||

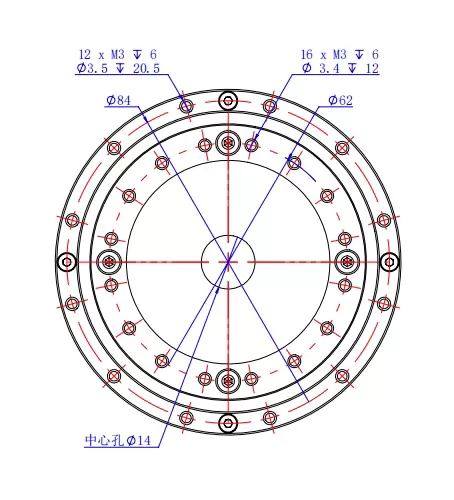

Overall Dimensions

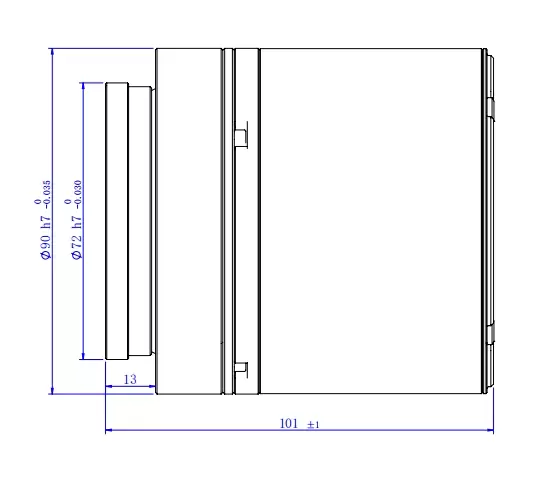

Product Drawing
