TCM14B

TCM14B

Joint Components

Adopting a dual magnetic encoder; High precision transmission performance; Super strong overload resistance.

Product Parameters

Technical DataTechnical Data

ProjectUnitTCM14B51TCM14B81TCM14B101
Reduction ratio5181101
Maximum allowable average loadNm8.613.313.3
Maximum allowable torque for start stop operationNm21.928.534.2
Rated speedrpm58.83729.7
Maximum speedrpm78.449.339.6
Rated currentA1.31.31.1
Maximum currentA443.2
Rated voltageVDC 48(Three models are universal)
Output moment of inertiakg·m²0.130.350.54
Allowable overturning momentNm74
Gearbox backlasharcsec≤10
Positioning accuracyarcsec90
Design lifeh10000
Weightkg0.95
Environmental conditions for useUsage temperature: 0-40 ° C/Storage temperature: -20-60 ° C
Usage humidity/Storage humidity: 20-80% RH
(No condensation) No dust, metal powder, corrosive gas, flammable gas, oil mist, etc.
Indoor use, avoid direct sunlight below 1000 meters above sea level
Motor insulationInsulation resistance: 100M Ω or above (DC500V)
Insulation voltage: AC1500V/1MIN
Insulation grade: Class A

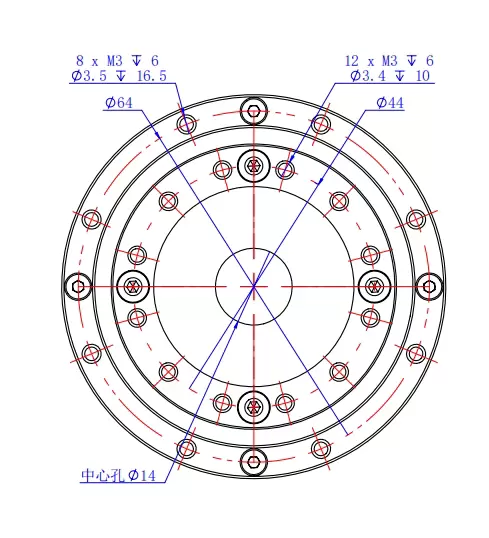

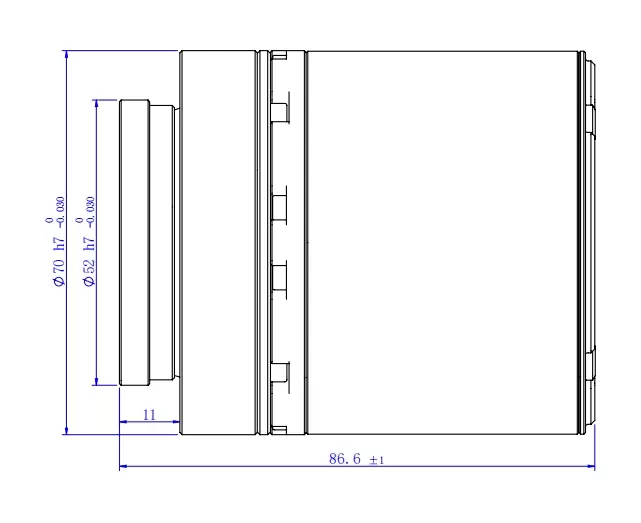

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
