Adopting high-precision resistance strain gauge principle.
Pressure bearing, easy and flexible installation and use.
Stainless steel material.

Pressure Sensor
Adopting high-precision resistance strain gauge principle.
Pressure bearing, easy and flexible installation and use.
Stainless steel material.
Technical Data| Project | Parameter | Project | Parameter |
| Range (optional) | 5kg,10kg,20kg,50kg,100kg,200kg,500kg,1t,2t,5t | Output sensitivity | 2.0±10%mV/V |
| Nonlinear | 0.05%F.S.(0-50kg)0.2%F.S.(100kg-2t) | Repetitiveness | 0.05%F.S. |
| Zero output | ±2%F.S. | Working temperature range | -20~80℃ |
| Temperature compensation range | -10~40℃ | Insulation resistance | ≥5000MΩ/100VDC |
| Recommended incentive voltage | 5-10VDC | Safe Overload | 150%F.S. |
| Temperature sensitivity drift | 0.05%F.S./10℃ | Zero sensitivity drift | 0.05%F.S./10℃ |
| Cable size | φ3x4m | Protection level | IP64 |
| Cable connection method | Ex+: Red; Ex -: Black; Sig+: Green; Sig -: White |

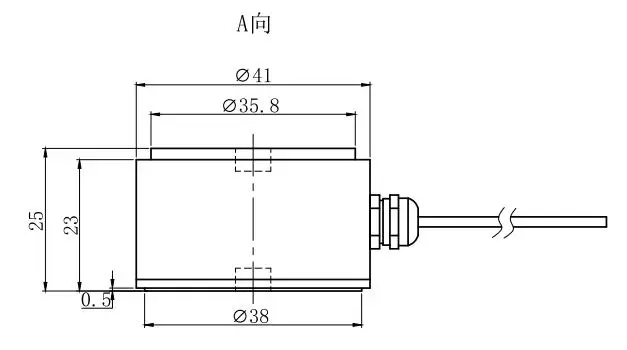

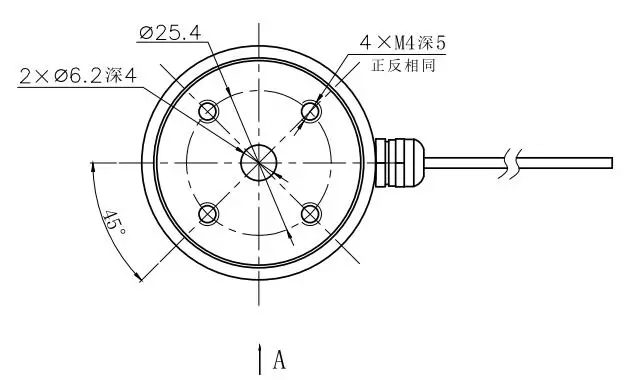

Overall Dimensions

Product Drawing
