HS-NJ-D100-H12

HS-NJ-D100-H12

Torque Sensor

Strong overload resistance.

Analog output, can be used in conjunction with a collector.

Support 485/CAN/USB/EtherNET/EtherC

Product Parameters

Technical DataTechnical Data

ProjectParameterProjectParameter
Measurement rangeMz=100-320N.mMaterialAluminum alloy
Nonlinear0.2%F.S.Repetitiveness0.1%F.S.
Zero output±5%F.S.Working temperature range-10~80℃
Temperature compensation range-10~70℃Insulation resistance≥2000MΩ/100VDC
Recommended incentive voltage3-10VDCSafe Overload120%F.S.
Temperature sensitivity drift0.05%F.S./10℃Zero sensitivity drift0.05%F.S./10℃
Long term crosstalk error≤3%F.S.Protection levelIP65
Cable size3m

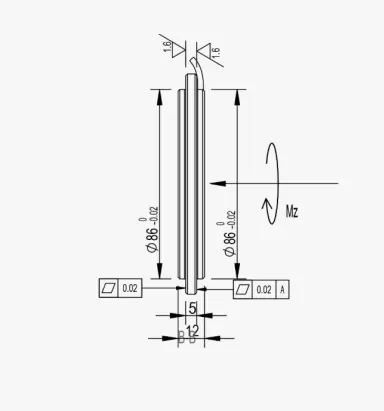

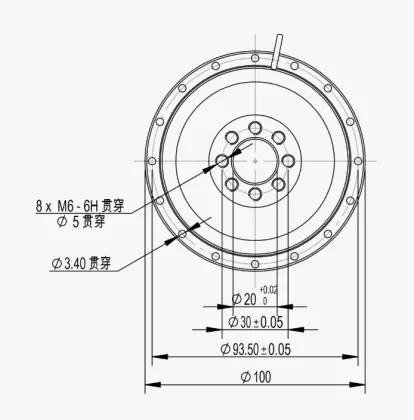

Overall DimensionsOverall Dimensions

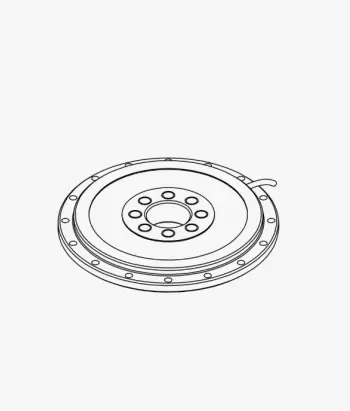

Product DrawingProduct Drawing

After ServiceAfter Service

To provide solid support for all after-sales services, ensuring service quality and efficiency:

1. National service outlets:Establishing service outlets and testing centers in major industrial cities in China to achieve regional service coverage and shorten on-site service response time;

2. Original factory engineering team:All service engineers have undergone professional training and assessment, possess the ability to debug, repair, and calibrate sensors/joint modules throughout the entire process, and are certified to work;

3. Standardized service process:Establish a standardized process from service acceptance, fault diagnosis, solution, service execution, and after-sales follow-up to ensure that every service is recorded, tracked, and guaranteed;

4. Service quality follow-up:After all services are completed, Follow up with customers within 72 hour, collect customer feedback, and continuously optimize service processes and quality.

Promise to quickly solve problems within 12 hours, respond promptly within 24 hours, and conduct on-site repairs within 36 hours.
