High precision, high sensitivity.
Analog output, can be used in conjunction with data acquisition.
Support 485/CAN/USB/EtherNET/EtherCAT.

Multi Dimensional Force Sensor
High precision, high sensitivity.
Analog output, can be used in conjunction with data acquisition.
Support 485/CAN/USB/EtherNET/EtherCAT.
Technical Data| Measurement range | Fxyz=200N Mxyz=5N.m | Material | Stainless steel |
| Nonlinear | ≤0.5%F.S. | Repetitiveness | ≤0.1%F.S. |
| Zero output | ±5%F.S. | Working temperature range | -20~80℃ |
| Temperature compensation range | -10 ~ 40℃ | Insulation resistance | ≥2000MΩ/50VDC |
| Recommended incentive voltage | 5-10VDC | Safe Overload | 300%F.S. |
| Temperature sensitivity drift | ≤0.1%F.S./10℃ | Zero sensitivity drift | ≤0.1%F.S./10℃ |
| Long term crosstalk error | ≤3%F.S. | Protection level | IP65 |
| Cable size | 3m | ||

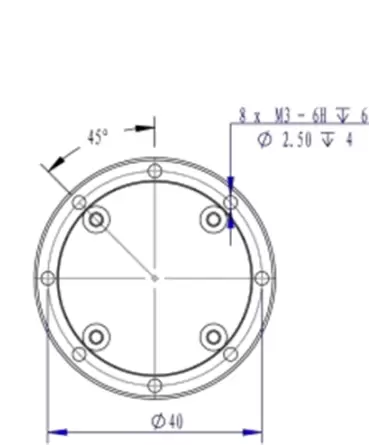

Overall Dimensions

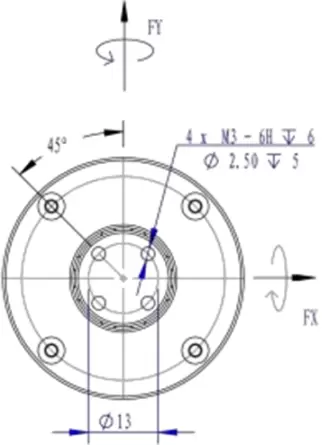

Product Drawing
